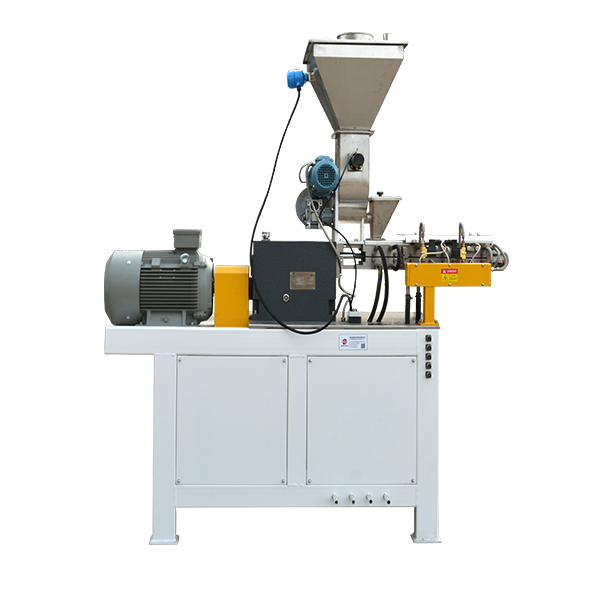

G series Twin Screw Extruder
Extruder
MAIN CHARATERISTIC
• Fine powder rework ability(Capacity will drop to 50%-60%)
• PID temperature control sys. (Dual temperature, Accuracy 2C˚ Auto control)
• Softening water auto cycle cooling system go through barrel
• High quality gear with low noise and good stability
• Equipped with strong permanent magnetic iron remover
• Energy saving with high kg/h.kw
MAIN PARAMETER
| Model | TSX-35 | TSX-46 | TSX-55 | TSX-64 | TSX-80 |
|---|---|---|---|---|---|
| Screw Diameter（mm) | 35 | 46 | 55 | 64 | 80 |
| L/D | 15:1 | 14:1 | 16:1 | 16:1 | 16:1 |
| Capacity（kg/H) | 50-80 | 100-150 | 300-400 | 400-500 | 600-800 |
| Main Drive (KW) | 7.5 | 15 | 30 | 45 | 55 |
| Feeding Motor Power (KW) | 0.18 | 0.37 | 0.55 | 0.55 | 0.75 |
| Heating Power（KW） | 3 | 3 | 4.5 | 6 | 9.8 |
| Mixing Motor Power（KW） | 0.18 | 0.37 | 0.37 | 0.37 | 0.37 |
| Screw speed（RPM） | 0-500 | 0-500 | 0-500 | 0-500 | 0-300 |
| Size（mm） | 1850*900*1600 | 1850*900*1600 | 2800*920*1900 | 3120*920*2020 | 3700*1050*2150 |
| Speed Adjust system | Adjustable speed by frequency inverter | ||||
| Feeding System | Variable frequency quantitative feeding | ||||
OPTIONAL
| Temperature control area | Two zone (matching) | Choose according to the powder characteristics and customer requirements. |
|---|---|---|
| Three zone (standard) | ||
| Bushing and screw material are optional. | (optional) | Provide materials with different strength and wear resistance for customers to choose.
|
| Screw selectable water | (selection) | Improve cooling efficiency and apply special powder. |
